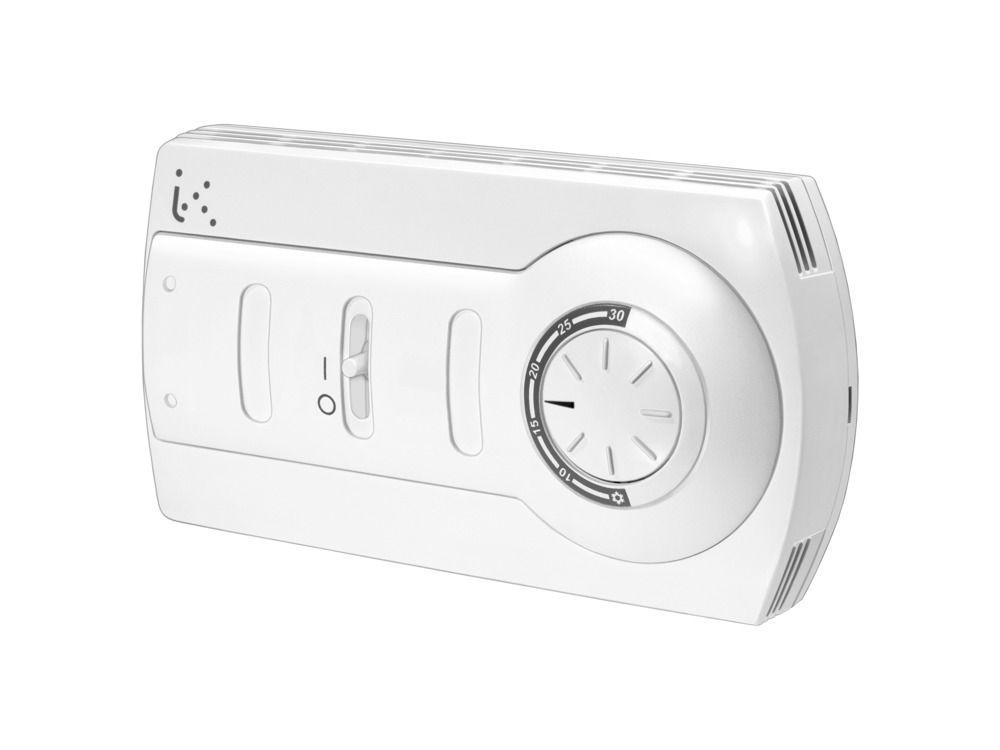

Room thermostats for 2 pipe system
This product is discontinued
2-pipe systems (typically fan coil) control for room temperature.
Navigate on this page
Articles
(3 st)-
DB-TA-323-199- On/off button
- X
- 3 speeds
- -
- Change-over function, season
- -
- Sensor
- NT0220-NTC100
-
DB-TA-323-998
- On/off button
- -
- 3 speeds
- -
- Change-over function, season
- Local
- Sensor
- NT0220-NTC100
-
DB-TA-323-995
- On/off button
- -
- 3 speeds
- -
- Change-over function, season
- Remote
- Sensor
- NT0220-NTC100
Specifications
| Supply voltage | 24/230 V AC ± 10 %, 50/60 Hz |
|---|---|
| Load | Max. 6 A |
| Output | 1 SPDT relay 6 A 24/230 V AC |
| Power consumption | 1 W |
| Sensor | Thermoresistor NTC 100K (for DB-TA-323-435 -> NTC 10K) |
| Ambient temperature | 0…40°C |
| Ambient humidity | 10…90 % RH (non-condensing) |
| Setpoint | 5…30°C |
| Hysteresis | 0.5 K |
| Storage temperature | -20…+70°C |
| Storage humidity | < 95% RH |
| Casing | ABS fireproof according to UL94 V-0 color (RAL 9010) |
| Weight | 210 g |
| Dimensions | 144 x 82 x 27mm |
| Protection class | IP30 |
| Isolation class | II |
