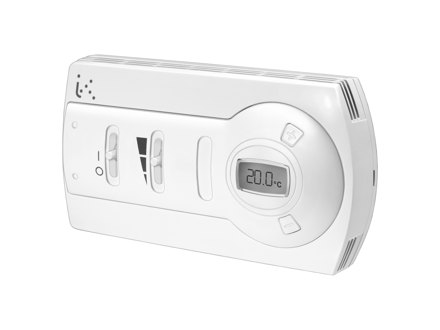

Room thermostats one stage for 2 pipe system with economy function

Temperature control for typical 2-pipe fan-coil systems with one stage in cooling mode.

Articles

(2 st)

Specifications for Room thermostats one stage for 2 pipe system with economy function
Supply voltage	230 V AC ± 10%, 50/60 Hz
Input	External contact for economy function
Outputs	Valves: 1 relay SPDT 6 A 230 V AC / speeds: 6 A 230 V AC, 50/60 Hz
Power consumption	1 W
Sensor	NTC 10K
Ambient temperature	0…40°C
Ambient humidity	10…90 % RH (non-condensing)
Setpoint	5…30°C
Hysteresis	0.5…4 K
Storage temperature	-20…+70°C
Storage humidity	< 95% RH
Economy	Adjustable range between 5…30 °C (replaced the working setpoint)
Temperature resolution	0.1°C
Casing	ABS fireproof according to UL94 V-0 color (RAL 9010)
Weight	220 g
Dimensions	144 x 82 x 34mm
Protection class	IP30
Isolation class	II
