Threaded globe valve in cast iron, stroke 16.5 mm
Industrietechnik

Threaded globe valve in cast iron, stroke 16.5 mm

VFS valve bodies are used in HVAC systems to control fluids in heating, cooling, refrigeration, ventilation in civil and industrial plants. VFS valve bodies are motorized by SE6 series electric actuators.

Specifications
Software & documentation

Articles

(15 st)
  • VFS215 - Regin
    VFS215
    Nominal diameter
    DN15
    Connection
    G 1/2"
    Kvs
    2.5 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa
  • VFS218 - Regin
    VFS218
    Nominal diameter
    DN20
    Connection
    G 3/4"
    Kvs
    4.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa
  • VFS220 - Regin
    VFS220
    Nominal diameter
    DN20
    Connection
    G 3/4"
    Kvs
    6.3 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa
  • VFS225 - Regin
    VFS225
    Nominal diameter
    DN25
    Connection
    G 1"
    Kvs
    10.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (700) kPa
  • VFS232 - Regin
    VFS232
    Nominal diameter
    DN32
    Connection
    G 1 1/4"
    Kvs
    16.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (440) kPa
  • VFS240 - Regin
    VFS240
    Nominal diameter
    DN40
    Connection
    G 1 1/2"
    Kvs
    25.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (270) kPa
  • VFS250 - Regin
    VFS250
    Nominal diameter
    DN50
    Connection
    G 2"
    Kvs
    40.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (220) kPa
  • VFS252 - Regin
    VFS252
    Nominal diameter
    DN50
    Connection
    G 2"
    Kvs
    30.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (220) kPa
  • VFS315 - Regin
    VFS315
    Nominal diameter
    DN15
    Connection
    G 1/2"
    Kvs
    2.5 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa
  • VFS318 - Regin
    VFS318
    Nominal diameter
    DN20
    Connection
    G 3/4"
    Kvs
    4.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa
  • VFS320 - Regin
    VFS320
    Nominal diameter
    DN20
    Connection
    G 3/4"
    Kvs
    6.3 m 3 /h m 3 /h
    Max. diff. pressure
    220 (1100) kPa

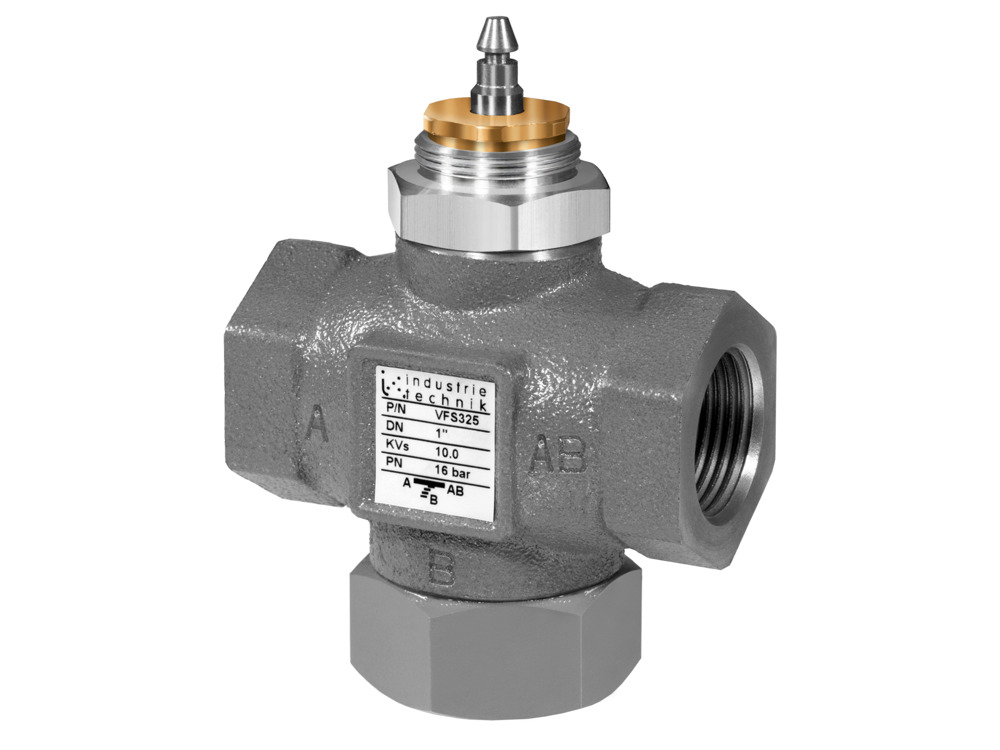

  • VFS325 - Regin
    VFS325
    Nominal diameter
    DN25
    Connection
    G 1"
    Kvs
    10.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (700) kPa
  • VFS332 - Regin
    VFS332
    Nominal diameter
    DN32
    Connection
    G 1 1/4"
    Kvs
    16.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (440) kPa
  • VFS350 - Regin
    VFS350
    Nominal diameter
    DN50
    Connection
    G 2"
    Kvs
    40.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (220) kPa
  • VFS352 - Regin
    VFS352
    Nominal diameter
    DN50
    Connection
    G 2"
    Kvs
    30.0 m 3 /h m 3 /h
    Max. diff. pressure
    220 (220) kPa

Specifications

Specifications for Threaded globe valve in cast iron, stroke 16.5 mm
Pressure rating PN16 (ISO7268 / EN1333)
Connection BSP internally threaded
Flow characteristics Direct way A → AB equal-percentage Indirect way B → AB linear
Max. leakage Direct way A → AB perfect sealing Indirect way B → AB 0.2 % KVs
Media temperature -10…+130°C
Media Water, water with max. 50% glycol saturated steam max. 2.5 ata
Rangeability 50:1
Stroke 16.5mm
Body Cast-iron G25
Plug Brass OT58
Stem Stainless steel AISI 304
Spring Stainless steel AISI 304
Packing box Brass OT58
O-rings FKM
