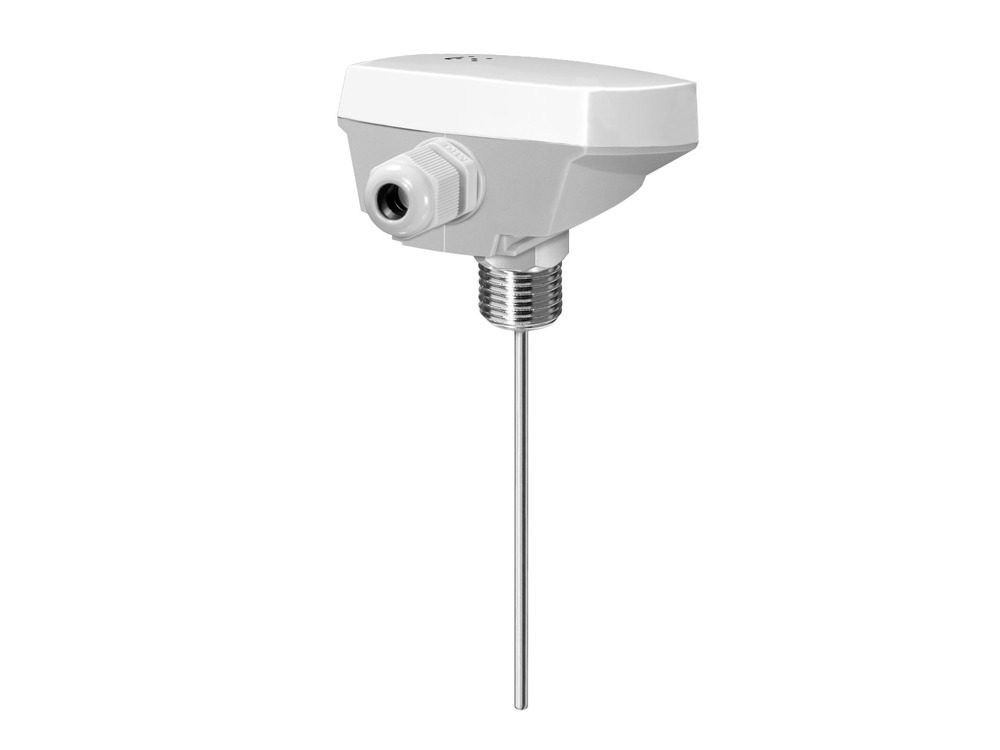

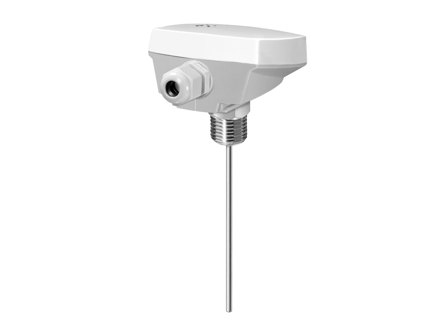

Immersion sensor with housing, without well, R1/4"
Immersion sensor for temperature measurement of heating or cooling batteries in ventilation units. Probe in stainless steel without a well.
Navigate on this page
Articles
(10 st)-
-
-
-
SI-NTC2.2-YImmersion sensor
- Sensor element
- NTC 2.2
- Nominal resistance
- 2252 Ω (25°C)
- Equivalent
- Johnson Controls
-
SI-NTC10-01-YImmersion sensor
- Sensor element
- NTC 10
- Nominal resistance
- 10 kΩ (25°C)
- Equivalent
- Aquatrol - Johnson Controls - Satchwell - Trend - Cylon - Honeywell - Distech
-
SI-NTC10-02-YImmersion sensor
- Sensor element
- NTC 10
- Nominal resistance
- 10 kΩ (25°C)
- Equivalent
- Carel - Evco - Eliwell - AB Industrietechnik
-
SI-NTC10-03-YImmersion sensor
- Sensor element
- NTC 10
- Nominal resistance
- 10 kΩ (25°C)
- Equivalent
- Andover - Delta Controls - Siebe - York
-
SI-NTC20-YImmersion sensor
- Sensor element
- NTC 20
- Nominal resistance
- 20 kΩ (25°C)
- Equivalent
- Honeywell
-
SI-NI1000-01-YImmersion sensor
- Sensor element
- Ni1000
- Nominal resistance
- 1000 Ω (0°C)
- Equivalent
- Siemens - Landis & Staefa
-
SI-NI1000-02-YImmersion sensor
- Sensor element
- Ni1000
- Nominal resistance
- 1000 Ω (0°C)
- Equivalent
- Sauter
Specifications
| Protection class | IP65 |
|---|---|
| Time constant | 4s |
| Insertion length | 90 mm |
| Measuring range, temperature | -20…+120°C |
| Cable gland | M16 |
| Connection, without well | R1/4" |
| Diameter, probe | 5mm |
| Pressure rating | PN16 |
| Dimensions, external (WxHxD) | 78 x 158 x 104mm |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material, probe | Stainless steel, SUS304 |
