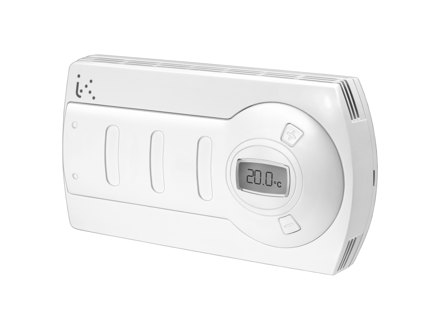

DB-TA-3B5-00A Room controllers for 2 pipe system with economy function and remote season changeover
Temperature control in heating, ventilation, refrigeration and air conditioning for typical 2-pipe fan-coil systems with proportional valve.
Navigate on this page
Specifications
| On/off button | No |
|---|---|
| 3 speeds | No |
| Change-over function, season | Remote contact |
| Supply voltage | 24 V AC ± 10%, 50/60 Hz |
|---|---|
| Input | External contact for economy and season changeover function |
| Output | Valves: 1 0-10 V outputs (R L > 10 kOhm) / speeds: 6 A 24/230 V AC, 50/60 Hz |
| Power consumption | 1 W |
| Sensor | NTC 10K |
| Ambient temperature | 0…40°C |
| Ambient humidity | 10…90 % RH (non-condensing) |
| Setpoint | 5…30°C |
| Storage temperature | -20…+70°C |
| Storage humidity | < 95% RH |
| Economy | Economy setpoint: adjustable range between 5…30°C |
| P-band | 1...5 K |
| Temperature resolution | 0.1°C |
| Casing | ABS fireproof according to UL94 V-0 color (RAL 9010) |
| Weight | 220 g |
| Dimensions | 144 x 82 x 34mm |
| Protection class | IP30 |
| Isolation class | II |
