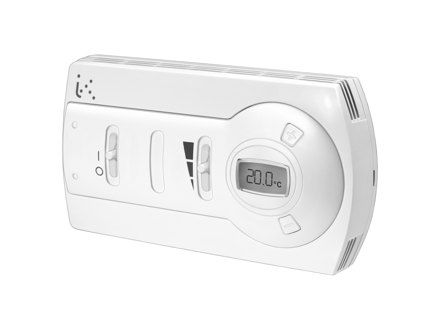

Room thermostats for 4 pipe system with economy function

4-pipe fan-coil control for room temperature.

Specifications
Software & documentation

Articles

(2 st)
  • DB-TA-3A3-93A - Regin
    DB-TA-3A3-93A
    On/off button
    No
    3 speeds
    Yes
    Change-over function, season
    W/S (neutral zone)
    Sensor
    NTA020-027P
  • DB-TA-3A3-99A - Regin
    DB-TA-3A3-99A
    On/off button
    No
    3 speeds
    No
    Change-over function, season
    W/S (neutral zone)
    Sensor
    NTA020-027P

Specifications

Specifications for Room thermostats for 4 pipe system with economy function
Supply voltage 230 V AC ± 10%, 50/60 Hz
Input External contact for economy function
Outputs Valves: 2 relays SPDT 6 A 230 V AC / speeds: 6 A 230 V AC, 50/60 Hz
Power consumption 1 W
Sensor NTC 10K
Ambient temperature 0…40°C
Ambient humidity 10…90 % RH (non-condensing)
Setpoint 5…30°C
Hysteresis 0.5…4 K
Neutral zone 1…4K
Storage temperature -20…+70°C
Storage humidity < 95% RH
Economy Adjustable range between 0…5 °C
Temperature resolution 0.1°C
Casing ABS fireproof according to UL94 V-0 color (RAL 9010)
Weight 220 g
Dimensions 144 x 82 x 34mm
Protection class IP30
Isolation class II
