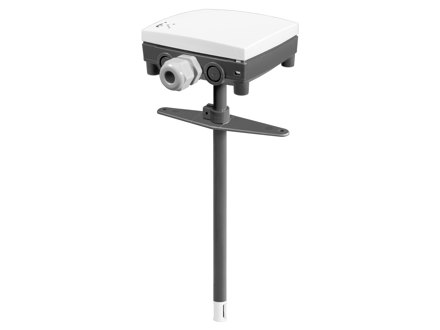

Air velocity transmitter

This product is discontinued

For air velocity measurement in ventilation ducts.

Articles

(0 st)

Specifications for Air velocity transmitter
Supply voltage	24 V AC ±20 %, 4 VA
Working range	0...10 m/s, 0...15 m/s, 0...20 m/s
Output signal	0...10 V (max. 1 mA), 4...20 mA
Time constant	1.5s
Accuracy	±(0.2 m/s + 3 % of the value) at 0...10 m/s ±(0.2 m/s + 3 % of the value) at 0...15 m/s ±(0.2 m/s + 4 % of the value) at 0...20 m/s
Damping	0.2 or 2 s
Ambient temperature	-10…+50°C
Insertion length	50…200mm
Mounting	Duct
Dimensions	90 x 85 x 255mm
Protection class	IP65
