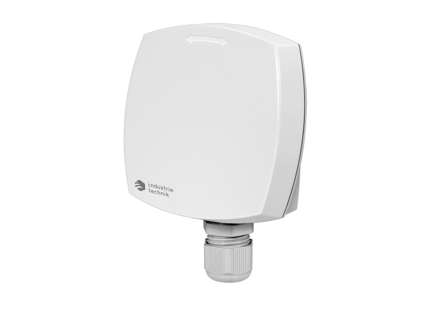

SC-PT1000-Y Clamp-on sensor with housing
Clamp-on sensor with housing
Navigate on this page
Specifications
| Mounting | Clamp-on |
|---|---|
| Dimensions, external (WxHxD) | 104x78x51 mm |
| Time constant | 3 s |
| Element type | PT1000 |
| Measuring range, temp | -20…120 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω (0°C) |
| Protection class | IP65 |
|---|---|
| Weight, incl. packaging | 0.14 kg |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
Software & documentation
Product sheet
Instructions
Accessories
PASTA-20
Heat-conductive paste in tube, 20 g
