Pockets for thermostats

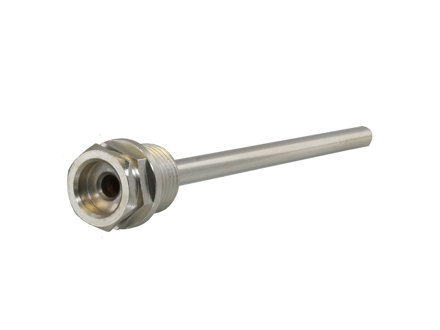

Pockets for thermostats in brass or stainless steel.

Specifications
Software & documentation
Accessories

Articles

(14 st)
  • DBZ-40/14 - Regin
    DBZ-40/14
    Brass pocket 108 mm, Ø external 16 mm, Ø internal 15 mm, connection R 1/2”
    Tube length
    108 mm
    Total well length
    128 mm
    External tube diameter
    16 mm
    Internal tube diameter
    15 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    Sì
    Reset function range 1
    Manual
    Setpoint adjustment, range 1
    External
  • DBZ-17/14/200 - Regin
    DBZ-17/14/200
    Tube length
    200 mm
    Total well length
    228 mm
    External tube diameter
    10 mm
    Internal tube diameter
    8.5 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 304)
    Fixing stopper for capillary
    Sì
    Reset function range 1
    Automatic
    Setpoint adjustment, range 1
    External
  • DBZ-01 - Regin
    DBZ-01
    Brass pocket 120mm, Ø external 11 mm, Ø internal 10 mm, connection R 1/2”
    Tube length
    120 mm
    Total well length
    140 mm
    External tube diameter
    11 mm
    Internal tube diameter
    10 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    Sì
  • DBZ-02 - Regin
    DBZ-02
    Stainless steel pocket AISI 304, 120 mm, Ø external 12 mm, Ø internal 10 mm, connection R 1/2”
    Tube length
    120 mm
    Total well length
    148 mm
    External tube diameter
    12 mm
    Internal tube diameter
    10 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 304)
    Fixing stopper for capillary
    Sì
  • DBZ-16 - Regin
    DBZ-16
    Brass pocket 120mm, Ø external 10 mm, Ø internal 8,5 mm, connection R 1/2”
    Tube length
    120 mm
    Total well length
    140 mm
    External tube diameter
    10 mm
    Internal tube diameter
    8.5 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    Yes
  • DBZ-17 - Regin
    DBZ-17
    Stainless steel pocket AISI 304, 120 mm, Ø external 10mm, Ø internal 8,5 mm, connection R 1/2”
    Tube length
    120 mm
    Total length
    148 mm
    Outside diameter tube
    10 mm
    Internal diameter tube
    8.5 mm
    Connection (diameter)
    R1/2"
    Material
    Stainless steel AISI 304
    Fixing stopper
    Yes
  • DBZ-16/14 - Regin
    DBZ-16/14
    Brass pocket 120 mm, Ø external 10 mm, Ø internal 8,5 mm, connection R 1/2”
    Tube length
    120 mm
    Total well length
    140 mm
    External tube diameter
    10 mm
    Internal tube diameter
    8.5 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    No
  • DBZ-18 - Regin
    DBZ-18
    Tube length
    40 mm
    Total well length
    61 mm
    External tube diameter
    11 mm
    Internal tube diameter
    10 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    Yes
    Reset function range 1
    Automatic
    Setpoint adjustment, range 1
    Internal
  • DBZ-19 - Regin
    DBZ-19
    Tube length
    40 mm
    Total well length
    68 mm
    External tube diameter
    10 mm
    Internal tube diameter
    8.5 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 304)
    Fixing stopper for capillary
    Yes
    Reset function range 1
    Automatic
    Reset function range 2
    Automatic
    Setpoint adjustment, range 1
    Internal
  • DBZ-30/14 - Regin
    DBZ-30/14
    Brass pocket 120 mm, ø external 8 mm, ø internal 7 mm, connection R 1/2"
    Tube length
    120 mm
    Total well length
    140 mm
    External tube diameter
    8 mm
    Internal tube diameter
    7 mm
    Connection
    R 1/2"
    Well material
    Brass / Cu-Ni
    Fixing stopper for capillary
    Yes
    Reset function range 1
    Manual
    Setpoint adjustment, range 1
    Internal
  • DBZ-41/14 - Regin
    DBZ-41/14
    Stainless steel pocket AISI 304 pocket, 120 mm, Ø external 16 mm, Ø internal 15 mm, connection R 1/2”
    Tube length
    120 mm
    Total well length
    148 mm
    External tube diameter
    16 mm
    Internal tube diameter
    14 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 304)
    Fixing stopper for capillary
    Yes
    Reset function range 1
    Manual
    Reset function range 2
    Automatic
    Setpoint adjustment, range 1
    Internal
  • DBZ-90R - Regin
    DBZ-90R
    Well for probe SI…
    Tube length
    90 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 316)
    Reset function range 1
    Manual
    Reset function range 2
    Automatic
    Setpoint adjustment, range 1
    Internal
  • DBZ-90W - Regin
    DBZ-90W
    Well for probe STI…
    Tube length
    90 mm
    Connection
    R 1/2"
    Well material
    Stainless steel
  • DBZ-135R - Regin
    DBZ-135R
    Well for probe STIC-…/135
    Tube length
    135 mm
    Connection
    R 1/2"
    Well material
    Stainless steel (AISI 316)

Specifications

Specifications for Pockets for thermostats

Software & documentation

Product sheet

Accessories

DBZ-AD1

Adapter 1/4" to 1/2". For mounting immersion sensors in 1/2".
