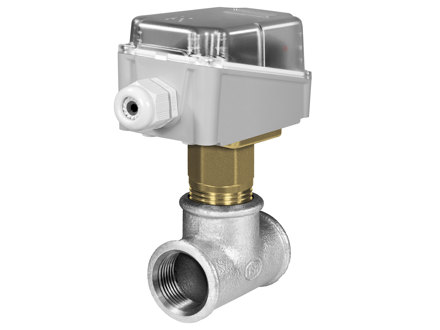

SF3E Liquid flow switch
Electromechanical flow switches, suited for pipes of industrial plants: heating and air conditioning, refrigeration systems and heat pumps. Available in brass (suitable for normal media), and stainless steel AISI 316L (compatible with certain aggressive media).
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 140x62x65 mm |
|---|---|
| Material | stainless steel paddles AISI 316L |
| Body material | Brass, R1/2" threaded |
| Max pressure | 1100 kPa |
| Media Temperature | -40...120 °C |
| Setpoint value, flow rate | 0.174...0.846 m³/h |
| Contact rating | 15 (8) A, 24...250 V AC |
| Measurand | Flow |
| Medium | Liquid |
| Pipe fitting | Tee fitting |
| Conformity | CE |
| Appliance class | Class I |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…85 °C |
| Storage humidity | -20...85 % RH |
| Media | water and not aggressive liquid |
| Material, cover | Transparent PC |
| Material, base | ABS |
