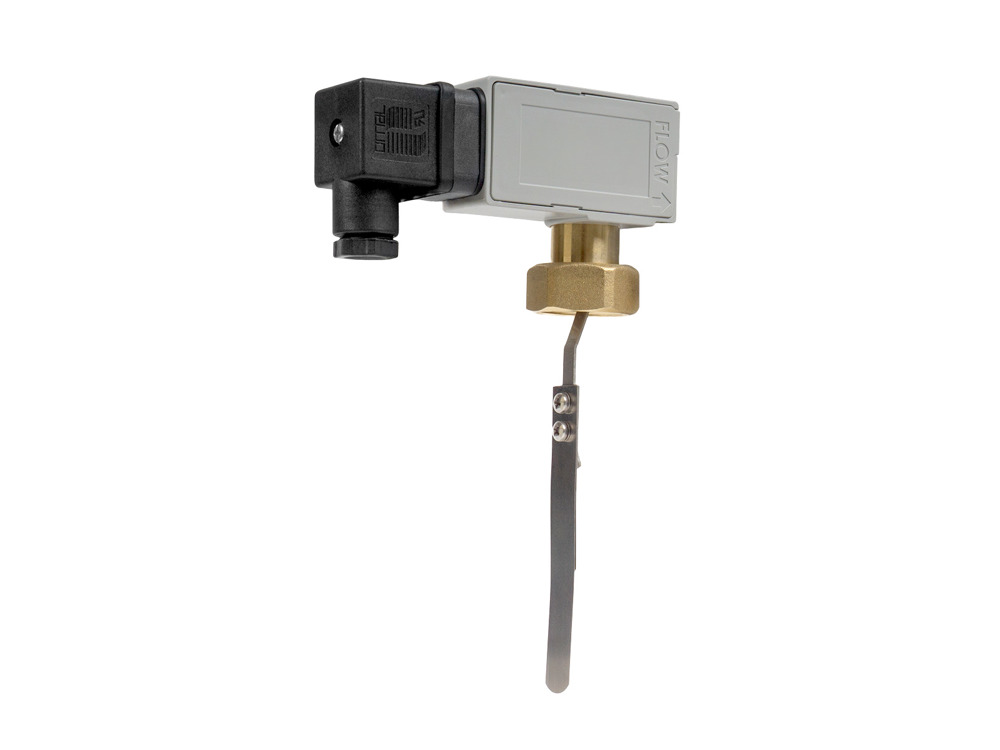

SFC-L0 SFC series liquid flow switch
The SFC series is a compact electromechanical flow switch family for use in heating and cooling systems intended for flow control of water or water with glycol.
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 103x62x31 mm |
|---|---|
| Material | stainless steel paddles AISI 304 |
| Body material | Brass |
| Media Temperature | -20...90 °C |
| Setpoint value, flow rate | 1.2...80.9 m³/h |
| Contact rating | 0.1 A, 30 V DC |
| Measurand | Flow |
| Medium | Liquid |
| Pipe fitting | Femalle threaded |
| Conformity | CE |
| Appliance class | Class II |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…95 % RH |
| Storage temperature | -40…70 °C |
| Storage humidity | 10...95 % RH |
| Media | water and not aggressive liquid |
| Material, housing | ABS grade UL94 V-0 |
