Room humidistat
Industrietechnik

Room humidistat

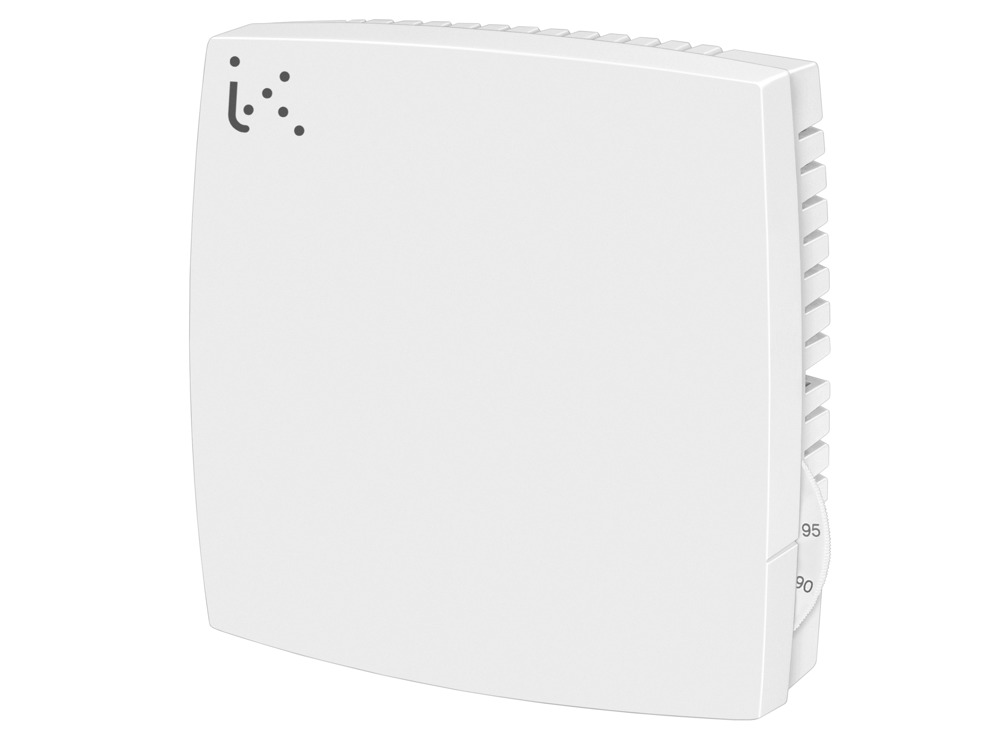

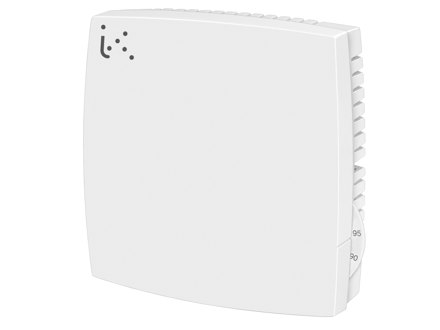

Electromechanical humidistat with a synthetic element. The setpoint knob can be locked.

Specifications
Software & documentation

Articles

(1 st)
  • DBZH-102 - Regin
    DBZH-102
    Room humidistat, 1-step
    Relay
    NC / NO
    Max. switching load
    5A
    Min. switching load
    100mA
    Switch capacity
    Ohmic load, dehumidifying 5 A 250 V AC, ohmic load, humidifying 2 A 250 V AC, inductive load (power factor >0,8) 1 A 250 V AC.
    Measuring range, humidity
    0…100 % RH
    Hysteresis, humidity
    7 % RH
    Setpoint
    35…95% RH

Specifications

Specifications for Room humidistat
Protection class IP30
Mounting Room
Material, housing Polycarbonate (PC)
Colour, housing RAL9010

Software & documentation

Product sheet

Instructions
