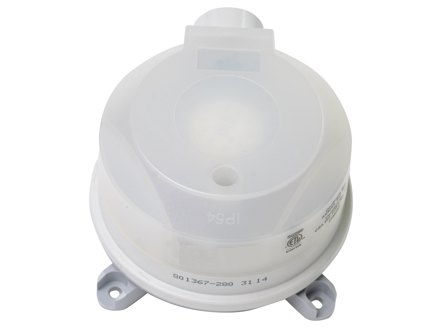

DBL-205BP5LUS Air differential pressure switches, UL
Air differential pressure switches with adjustment range from 50 to 500 Pa with UL approval
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 118x118x58 mm |
|---|---|
| Max. switching load | 0.1 A |
| Pressure, range sensor | 50…500 Pa |
| Media | air or non aggressive and non inflammable gases |
| Max. allowed diff. Pressure sensor 1 | 10 kPa |
| Hysteresis | 20 Pa |
| Material | Diaphragm in silicon (LSR) |
| Measurand | Pressure |
| Medium | Air/Gas |
| Mounting | Wall/(Room) |
| Conformity | UL |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…85 °C |
| Storage humidity | 0...95 % RH |
| Weight, incl. packaging | 0.18 kg |
| Material, housing | PS |
