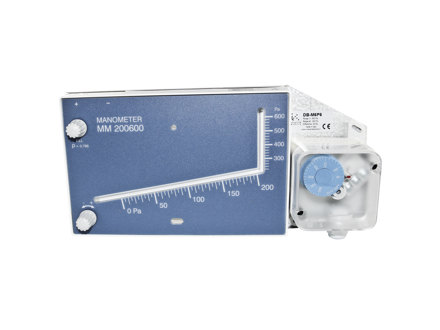

DB-M6P6 Manometers and air differential pressure switches
Differential pressure visualization of air or non-aggressive and non-inflammable gases with alarm at a pre-set value.
The compact unit consists of:
- a differential manometer with an inclined liquid pipe, complete of tank to allow temporary overpressure;
- a bottle containing indication liquid and 2 stickers (red/green);
- a differential pressure switch connected to the manometer with PVC hose, complete of pressure adjustment knob, terminals for electrical connections and cable gland PG 9 (protection class according to EN 60529: IP54);
- PVC hose Ø 4 x 7 - 2.2 m length, pipes and fixing screws.
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 290x140x64 mm |
|---|---|
| Pressure, range sensor | 0…600 Pa |
| Pressure, range sensor 2 | 40…600 Pa |
| Max. allowed diff. Pressure sensor 1 | 200 kPa |
| Max. allowed diff. Pressure sensor 2 | 50 kPa |
| Hysteresis | 30 Pa |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Weight, incl. packaging | 0.4 kg |
| Media | Air or non aggressive gases |
| Material, housing | ABS, PMMA, PC |
