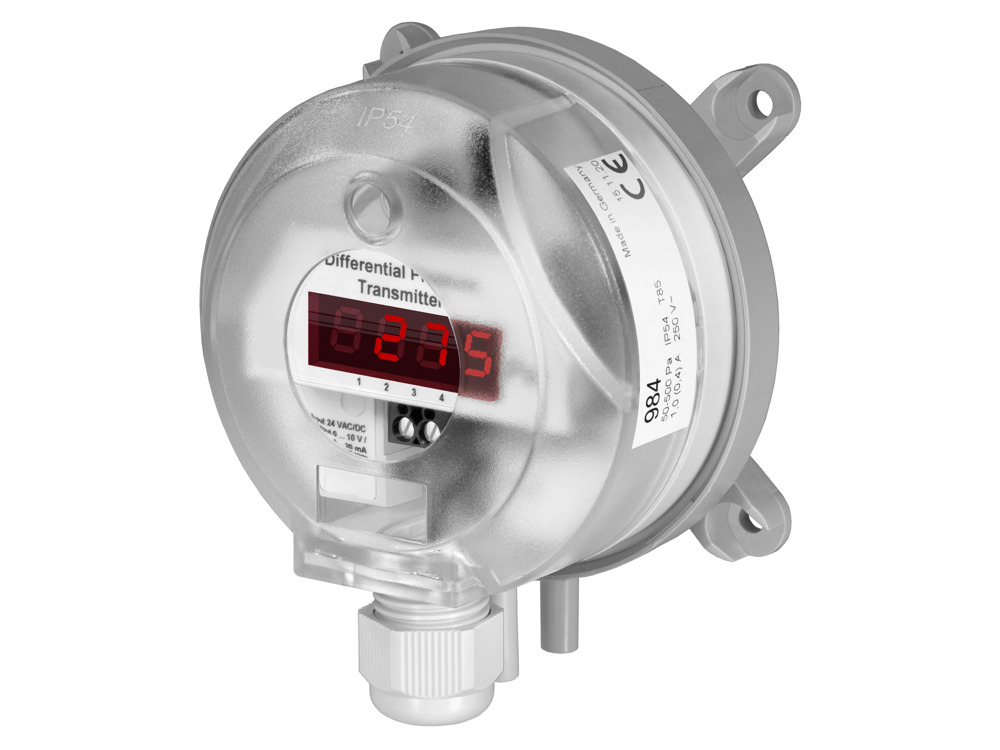

984M.3x3114 Differential pressure transmitters
Differential pressure transmitter for monitoring differential gaseous pressure, non-aggressive media. Can be mounted in any position.
Possible areas of applications are:
- air-conditioning and clean rooms;
- building automation;
- valve and flap control;
- fluid and level monitoring;
- control of air flows.
Navigate on this page
Specifications
| Power Supply | 24VAC/DC (18...30 V AC 50Hz / 18...30 V DC), 6.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 85x100x58 mm |
| Display | Yes |
| Display type | LED, 4 digits |
| Analogue output load impedance 0...10v | ≤ 10mA |
| Response time | 100 ms or 1 sec., selectable |
| Accuracy, pressure sensor 1 | <±2 % full scale % |
| Measuring range pressure | -50...+50 Pa |
| Max. allowed diff. Pressure sensor 1 | 60 kPa |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Mounting | Wall |
| Weight, incl. packaging | 0.14 kg |
| Media | Air and non-corrosive gases |
| Cable gland | M20x1,5 |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | ABS |
| Material, base | POM |
