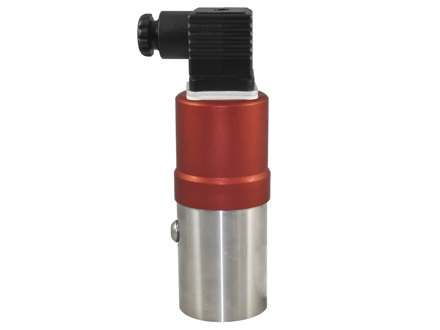

TPDL250 Differential pressure transmitter for liquids and gases
Differential pressure transmitter for measurement of liquids (also glycol-mixed) and gases (not ammonia).
Navigate on this page
Specifications
| Power Supply | 18…33 V DC / 24 V AC ±15%, 0,1 VA |
|---|---|
| Dimensions, external (WxHxD) | 40x79x mm |
| Analogue output load impedance 0...10v | > 10kOhm |
| Measuring range | 0...250 kPa |
| Max. overload pressure | 1200 kPa |
| Max. system pressure | 25 bar |
| Accuracy, resolution sensor | ±1.3 % fs % |
| Cabel | Three wire cable, 1.5 m |
| Protection class | IP65 |
|---|---|
| Storage temperature | -15…85 °C |
| Media | liquids and gases |
| Pressure connection | 6 mm for copper tube |
| Dynamic response time | <5 ms |
| Material, housing | Stainless steel 1.4305 |
| Material sensor | Ceramic material |
Software & documentation
Product sheet
Other documentation
Accessories
TPDL-NIPPEL
Nipple (R=1/8" 27 NPT) for connection of Ø 6 mm copper pipe
TPDL-R
Copper pipe, Ø 6 mm, length 30 cm
