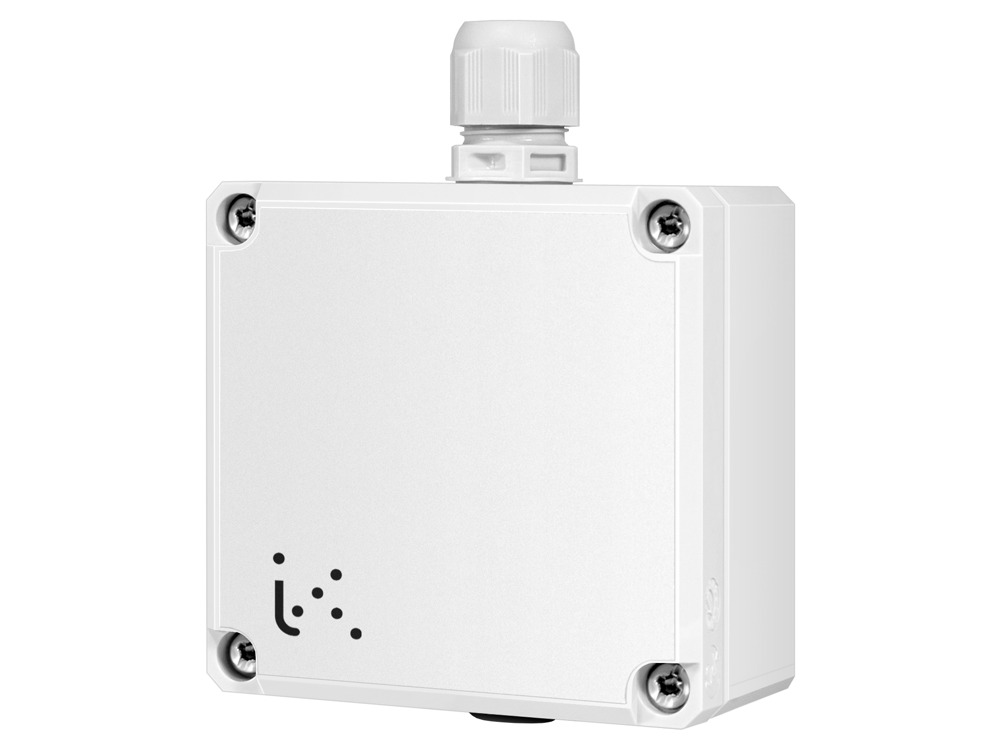

CO transmitter
This device measures the carbon monoxide concentration using an electrochemical method of measurement characterised by high selectivity even in low concentrations. It is installed for both safety and energy-saving reasons. The output signals are linear representations of the gas concentration.
The transmitter is TÜV-approved in accordance with VDI 2053.
Navigate on this page
Articles
(1 st)-
TCO1CO transmitter- Mounting
- Wall
- Power Supply
- 24VDC (12...28 V DC)
- Dimensions, external (WxHxD)
- 80x82x86 mm
- Sensor type
- CO
- Measuring principle
- Electrochemical
- Accuracy
- ±3 %
- Measuring range, gas in air ppm
- 0…300 ppm
- Output signal, gas in air
- 4-20mA
- Lifetime sensor
- ~ 6 years
Specifications
| Protection class | IP56 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Mounting | Wall |
| Weight, incl. packaging | 0.19 kg |
| Cable gland | M16x1,5 |
| Material, housing | Polycarbonate (PC) |
