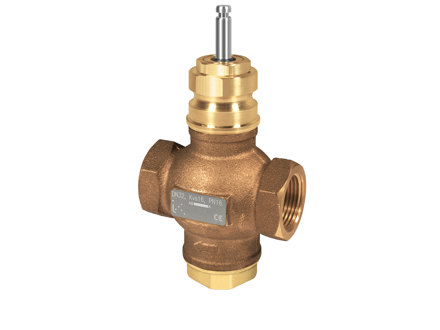

VFG232N-16 VFG2...N/VFG3 - 2- and 3-way internally threaded control valves
Valves, DN15-50 kvs 0.63-39, 20 mm stroke, designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. They also function very well in domestic water systems. The valves are intended for use together with SE5... actuators. Valves with DN32-50 may also be used with SE10..., if a larger actuating force is required.
Navigate on this page
Specifications
| Nominal diameter | DN32 |
|---|---|
| Kvs | 16 m 3 /h |
| Connection | G1¼" |
| ΔPs (RVAN5) | 400 kPa |
| ΔPmax (RVAN5) | 400 kPa |
| ΔPs (RVAN10) | 800 kPa |
| ΔPmax (RVAN10) | 450 kPa |
| Pressure rating | PN16 |
|---|---|
| Connection | BSP internally threaded according to ISO 228/1 |
| Flow characteristics | Equal percentage |
| Max. leakage | 0.1 % of Kvs |
| Media | Hot, cold, or glycol-mixed water |
| Media temperature | -5…+150°C |
| Rangeability | 100:1 |
| Stroke | 20mm |
| Body | Gunmetal CC491K (RG5) |
| Seat | Gunmetal CC491K (RG5) |
| Plug | Gunmetal CC491K (RG5) |
| Stem | Stainless steel 1.4305 |
| Packing box | Dezincification resistant brass CW511L |
| O-rings | Viton |
Software & documentation
Product sheet
Accessories
IS0603080300
Spare parts kit, packing box for ETRS, MTVS and MTRS valves (until 2019-12), for ETVS valves (until 2021-04)…
IS2921357901
Spare parts kit, packing box for VFD2/VFD3, VFG2...N and VFG3 valves (from 2020-01) and for VFD2 valves (from…
