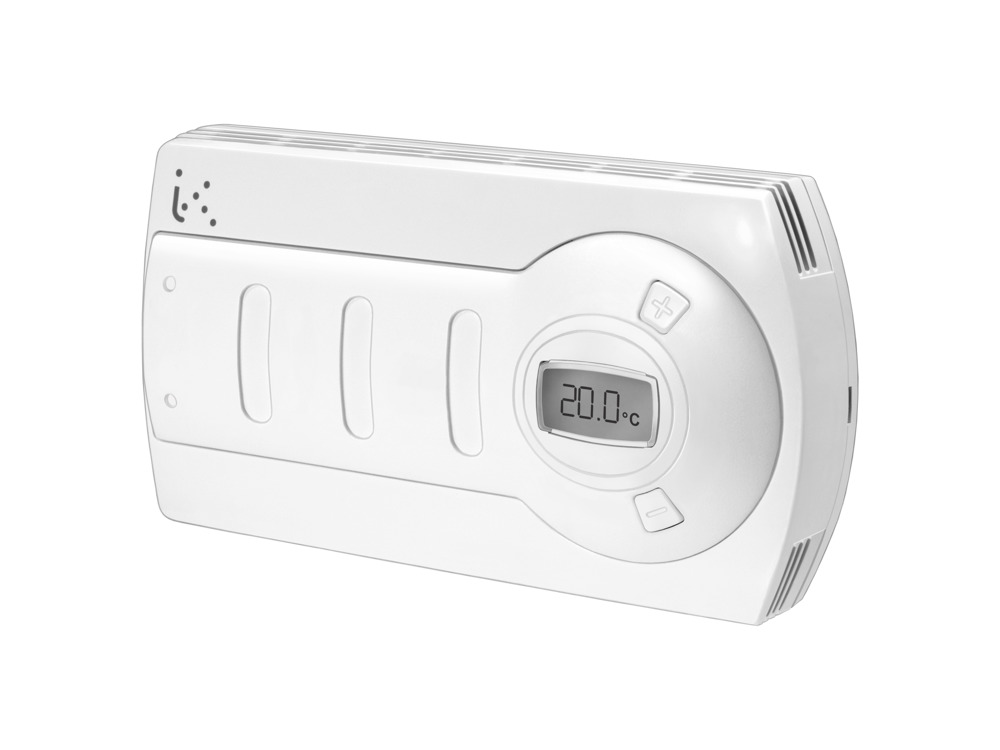

Room controllers for 2 pipe system with economy function and remote season changeover

Temperature control in heating, ventilation, refrigeration and air conditioning for typical 2-pipe fan-coil systems with proportional valve.

Articles

(3 st)

Specifications for Room controllers for 2 pipe system with economy function and remote season changeover
Supply voltage	24 V AC ± 10%, 50/60 Hz
Input	External contact for economy and season changeover function
Output	Valves: 1 0-10 V outputs (R L > 10 kOhm) / speeds: 6 A 24/230 V AC, 50/60 Hz
Power consumption	1 W
Sensor	NTC 10K
Ambient temperature	0…40°C
Ambient humidity	10…90 % RH (non-condensing)
Setpoint	5…30°C
Storage temperature	-20…+70°C
Storage humidity	< 95% RH
Economy	Economy setpoint: adjustable range between 5…30°C
P-band	1...5 K
Temperature resolution	0.1°C
Casing	ABS fireproof according to UL94 V-0 color (RAL 9010)
Weight	220 g
Dimensions	144 x 82 x 34mm
Protection class	IP30
Isolation class	II
