IR motion detector
Industrietechnik

IR motion detector

Specifications

Articles

(2 st)
  • SIR24-PC - Regin
    SIR24-PC
    Power Supply
    24VAC/DC (22...26 V AC 50Hz / 22...26 V DC), 1.0 VA
    Dimensions, external (WxHxD)
    x110x44 mm
    Relay
    NC / NO potential-free change-over relay
    Max. switching load
    200 mA
    ON-Delay
    0, 10, 30, 60, 300 or 600 s (selectable)
    OFF-Delay
    10, 60, 300, 600, 1200 or 1800 s (selectable)
    Detection area - Angle
    360 °
    Detection range Hight
    6m @ 2.4m, 10.5m @ 4.2m
    Detection speed
    0.1...3.0 ms
  • SIR24-P - Regin

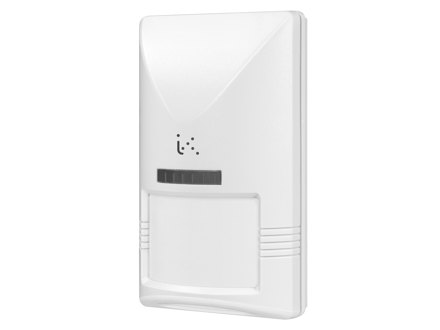

    SIR24-P
    Power Supply
    24VAC/DC (22...26 V AC 50Hz / 22...26 V DC), 1.0 VA
    Dimensions, external (WxHxD)
    66x112x45 mm
    Relay
    NC / NO potential-free change-over relay
    Max. switching load
    200 mA
    ON-Delay
    0, 10, 30, 60, 300 or 600 s (selectable)
    OFF-Delay
    10, 60, 300, 600, 1200 or 1800 s (selectable)
    Detection area - Angle
    110 °
    Detection range Hight
    6m @ 1.8m, 3.6m @ 20m
    Detection speed
    0.1...3.0 ms

Specifications

Specifications for IR motion detector
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Mounting Room
