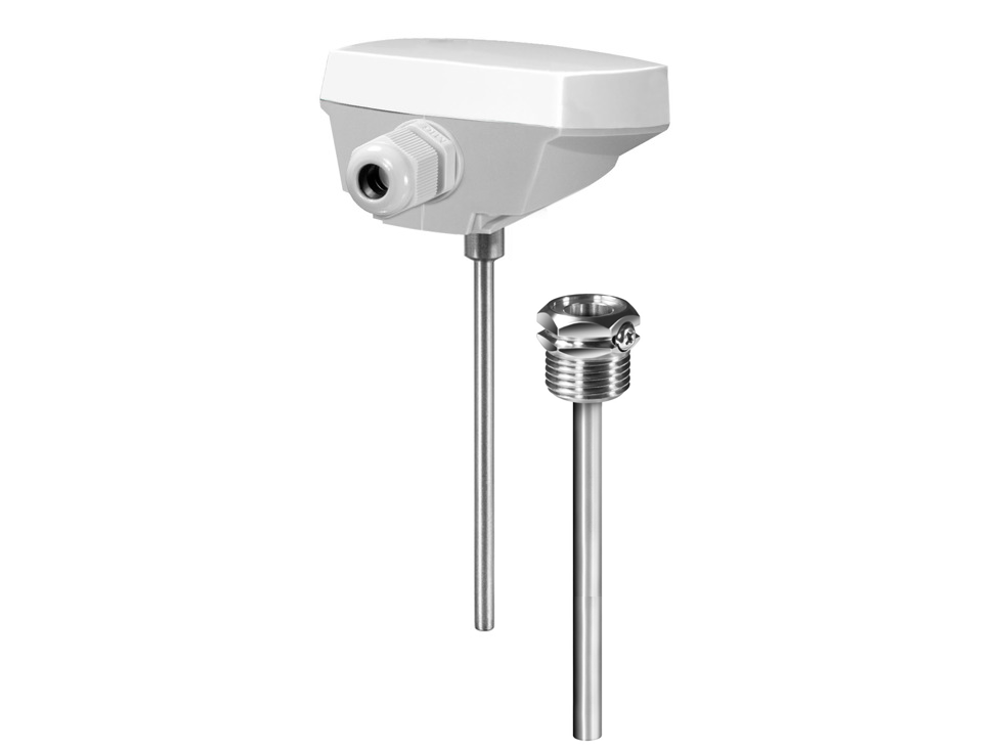

STI-PT100-Y Immersion sensor with housing and well
Immersion sensor
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 78x156x104 mm |
|---|---|
| Media temp limits | -20…120 °C |
| Time constant | 18 s |
| Diameter, well | 8 mm |
| Element type | PT100 |
| Measuring range, temp | -20…120 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 100 Ω (0°C) |
| Material well | Nickel-plated copper |
| Insertion length | 90 mm |
| Protection class | IP65 |
|---|---|
| Weight, incl. packaging | 0.2 kg |
| Pressure rating immersion | PN25 PN |
| (Well/Pressure) connection | R 1/2 " |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material sensor | Stainless steel, EU1.4301 (SUS304) |
