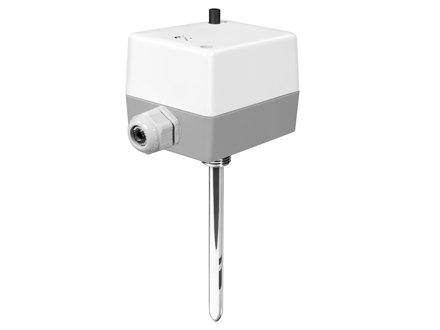

DBTV-18U Immersion thermostat, IP65
High quality immersion thermostats for use in cooling, heating and ventilation systems.
Navigate on this page
Specifications
| Sensor element | Liquid-filled copper capillary |
|---|---|
| Electrical contact | SPDT microswitch |
| Switching capacity | 15 (8) A, 24…250 V AC |
| Setpoint value, temperature range | 20...90 °C |
| Hysteresis, temperature | Maximum manual reset |
| Reset function | Manual |
| Setpoint adjustment | Internal |
| Dimensions, external (WxHxD) | 72x70x108 mm |
| Measurand | Temperature |
| Medium | Liquid |
| Mounting | Immersion |
| Reset function | Manual |
| Pipe fitting | Male threaded |
| Conformity | CE |
| Max. probe temperature | 60 °C |
|---|---|
| Appliance class | Class I |
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…70 °C |
| Storage humidity | 10...95 % RH |
| Weight, incl. packaging | 0.44 kg |
| Material, cover | ABS |
| Material, base | PC+ABS blend (Bayblend®) |
Software & documentation
Accessories
DBZ-16/14
Brass pocket 120 mm, Ø external 10 mm, Ø internal 8,5 mm, connection R 1/2”
