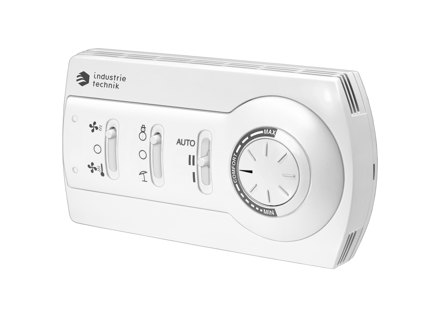

Room thermostats for 2 or 4-pipe fan coil systems with EC fans
Control of 2 or 4-pipe fan coil units with EC fans for regulating room temperature in heating and cooling applications. While ensuring the desired temperature is maintained, it prioritizes comfort level and energy savings
Navigate on this page
Articles
(2 st)-
DB-TA-385-433Room thermostats for 2-pipe fan coil systems with EC fans- Power Supply
- 85...253 V AC, 50/60 Hz
- Dimensions, external (WxHxD)
- 144x82x34 mm
- Setpoint knob
- Yes
- 3-step fan control
- Yes
- Power consumption
- 1 W
- Sensor
- NTC10K
- Setpoint
- Summer: +24 ±5 °C, winter: +20 ±5 °C; mechanical limitation of the setpoint adjustment
- Differential
- 0.5 K
- ON / OFF button
- Yes
- System (pipe)
- 2-pipe systems
- Winter / Summer
- manual
-
DB-TA-385-430Room thermostats for 4–pipe fan coil systems with EC fans
- Power Supply
- 85...253 V AC, 50/60 Hz
- Dimensions, external (WxHxD)
- 144x82x34 mm
- Setpoint knob
- Yes
- 3-step fan control
- Yes
- Power consumption
- 1 W
- Sensor
- NTC10K
- Setpoint
- Summer: +24 ±5 °C, winter: +20 ±5 °C; mechanical limitation of the setpoint adjustment
- Differential
- 0.5 K
- ON / OFF button
- Yes
- System (pipe)
- 4-pipe systems
- Winter / Summer
- manual
Specifications
| Appliance class | Class II |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Room, Wall |
| Weight, incl. packaging | 210 kg |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | ABS |
| Colour, housing | RAL9010 |
